Yamaha Corporation Press Release: October 22, 2025 Yamaha Intelligent L2 Switches “SWX2320-30MC” and
“SWX2322P-30MC” Standard L3 Switches “SWX3220-30MC” and

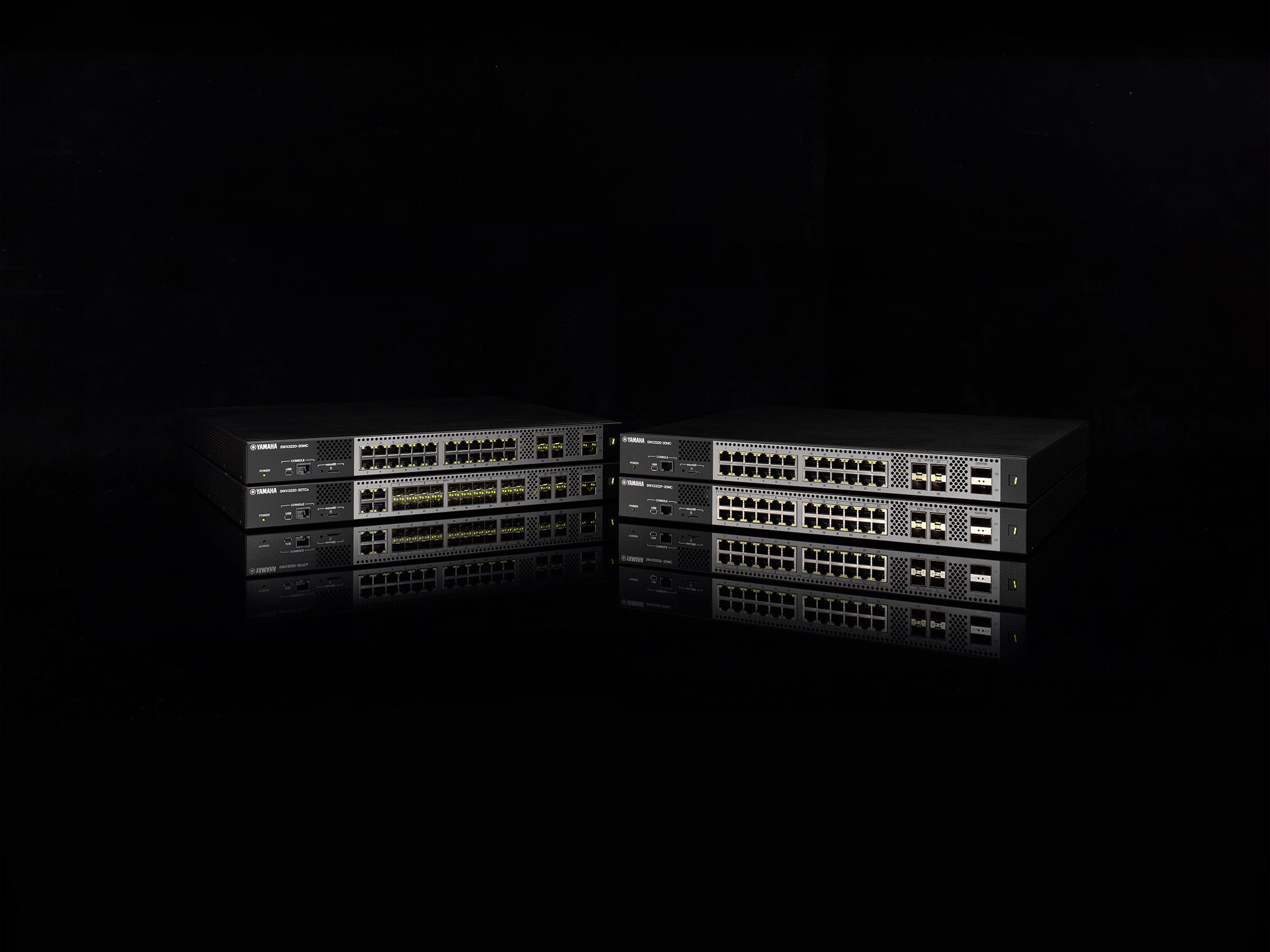

“SWX3220-30TCs” Take your network to the next level. Introducing Yamaha’s first 100 Gigabit/25 Gigabit compatible switch – the new standard for future corporate networks and ProAV environments. Released in December 2025 ~ Yamaha Corporation will release four new models of its first 100 Gigabit/25 Gigabit network switches for the enterprise and ProAV markets in December 2025: the SWX2320-30MC, SWX2322P-30MC, SWX3220-30MC, and SWX3220-30TCs.
https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-30cc2e104c1d60ab2ec392fb68d1eded-2000×1500.jpg
reliability. Product name Product number Suggested retail price Release date Intelligent L2 switch SWX2320-30MC 1,155,000 yen (1,050,000 yen excluding tax) December 2025 Intelligent L2 PoE Switch SWX2322P-30MC 1,375,000 yen (1,250,000 yen excluding tax) December 2025 Standard L3 switch SWX3220-30MC 1,375,000 yen (1,250,000 yen excluding tax) December 2025 Standard L3 switch SWX3220-30TCs 1,155,000 yen (1,050,000 yen excluding tax) December 2025 ◎Sales Plan: Total: 1,600 units/year All four models being released this time are equipped with two 100 Gigabit slots (QSFP28) and four 25 Gigabit slots (SFP28). The intelligent L2 switches “SWX2320-30MC” and
“SWX2322P-30MC” inherit the functionality of the popular “SWX232x Series” and are equipped with 24 high-speed LAN ports supporting 10 Gigabit/Multi-Gigabit. The “SWX2322P-30MC” also supports PoE (IEEE 802.3bt) power supply, making it suitable for powering wireless LAN access points compatible with the currently adopted Wi-Fi 6/6E (IEEE 802.11ax) and the expected future popularity of Wi-Fi 7 (IEEE 802.11be). It is also suitable for accommodating access switches equipped with high-speed LAN ports, making it ideal as a floor switch supporting core networks. In addition, the standard L3 switches “SWX3220-30MC” and “SWX3220-30TCs” inherit the features of the popular “SWX3220 Series.” The “SWX3220-30MC” features 24 10
Gigabit/Multi-Gigabit high-speed LAN ports, while the “SWX3220-30TCs” is equipped with 20 SFP/SFP slots. Both models feature stacking capabilities utilizing the 100 Gigabit slots, and high fault tolerance with redundant power supplies and hot swapping in the event of a failure, making them ideal for use as core or distribution switches supporting backbone networks.

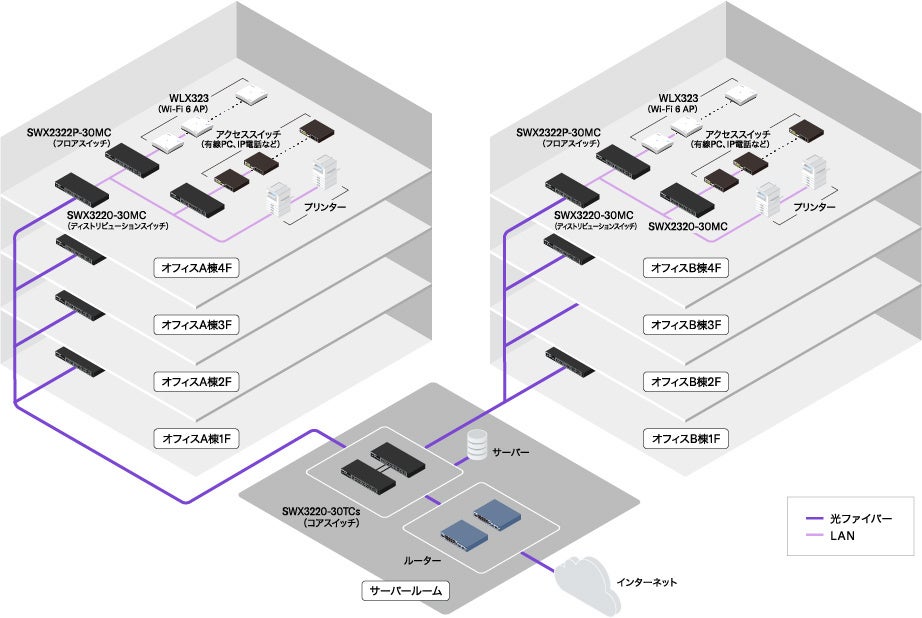

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-32cf7394e76db62d385637505d3d0127-922×618.jpg Usage example for a corporate network (LAN) In the ProAV market, audio and video media are becoming increasingly faster and more
multi-channel, and network traffic is expected to increase further. By introducing the newly released SWX2320-30MC, SWX2322P-30MC,
SWX3220-30MC, and SWX3220-30TCs, you can build a media transmission environment across multiple segments using L3 switches, in addition to media transmission within the same segment using conventional L2 switches, in anticipation of increased traffic. Among these, the “SWX2322P-30MC” supports PoE (IEEE 802.3bt) and has a maximum power supply capacity of 720W for the entire system, making it ideal for stable power supply to multiple video and audio encoder/decoder devices. It simplifies power wiring and provides flexible
installation, supporting stable network operation in locations where many video and audio devices are in use, such as amusement facilities and event venues. In addition, the SWX3220-30MC and SWX3220-30TCs support IEEE 1588 PTPv2 BC (Boundary Clock), enabling the creation of a highly accurate media synchronization environment. This allows them to be used for IP-based video and audio transmission in the
broadcasting market.

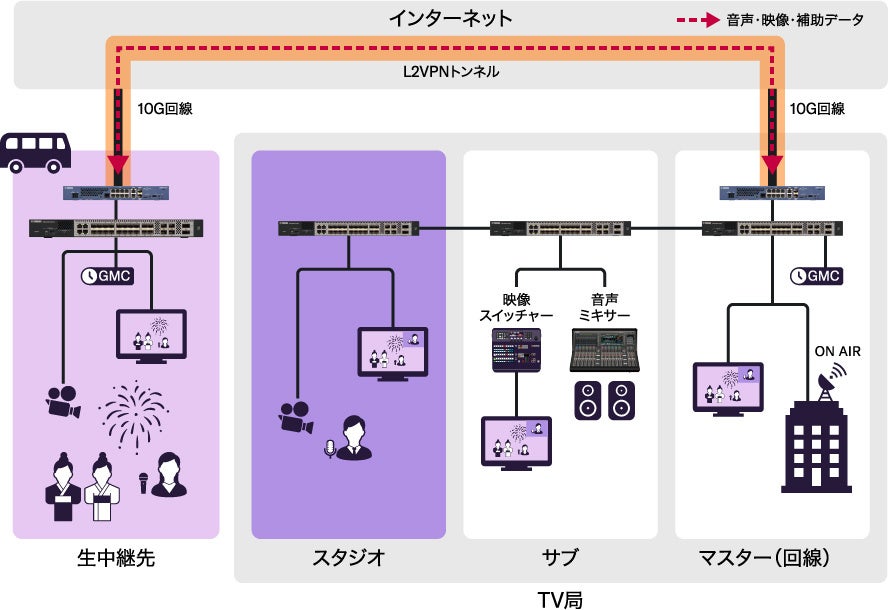

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-13ec9de7fe9574adcbc52a096ebf38df-888×610.jpg Usage example in the ProAV market (broadcast equipment) Main features 1. The ideal choice for next-generation infrastructure – Achieve high-speed, stable communications with 100 Gbps/25 Gbps compatible switches – All of the switches being released this time are equipped with 100 Gbps/25 Gbps interfaces, enabling stable transmission of large volumes of traffic and high-load media, which were previously limited by conventional 1 Gbps/10 Gbps configurations. The SFP28 and QSFP28 modules can also be installed, providing the high speed and scalability required for next-generation network infrastructure. Furthermore, in addition to 10 Gbps communication via Cat6A LAN cables and SFP , the SFP also supports 25 Gbps communication via optical fiber for connections to upstream switches, and 100 Gbps communication via QSFP28 between stacked devices. This enables the construction of a consistent high-speed, high-capacity network from the access layer to the core layer, providing stable communication even in environments where real-time data transmission is required for video, audio, and control data. This configuration is ideal for locations requiring high bandwidth and high reliability, such as broadcasting facilities, distribution networks for educational facilities, and corporate backbone networks. Its flexible response to future traffic increases allows for reliable deployment for long-term operation.
https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-2d0fbd8cad0942da9ac5343b912897f8-884×356.jpg 2. High fault tolerance achieved with redundant power supplies and hot-swappable power supply units – Power supply units used – The standard L3 switches “SWX3220-30MC” and “SWX3220-30TCs” support redundant power supplies, providing high fault tolerance to support stable operation of core networks even in the event of a power supply failure. In addition, by adding an optional hot-swappable power supply unit to the main unit, operation can continue on the other side even if one power supply fails, and the power supply unit can be replaced without shutting down the network. This allows for reliable deployment in environments where availability is important, such as broadcasting facilities and corporate backbone networks.

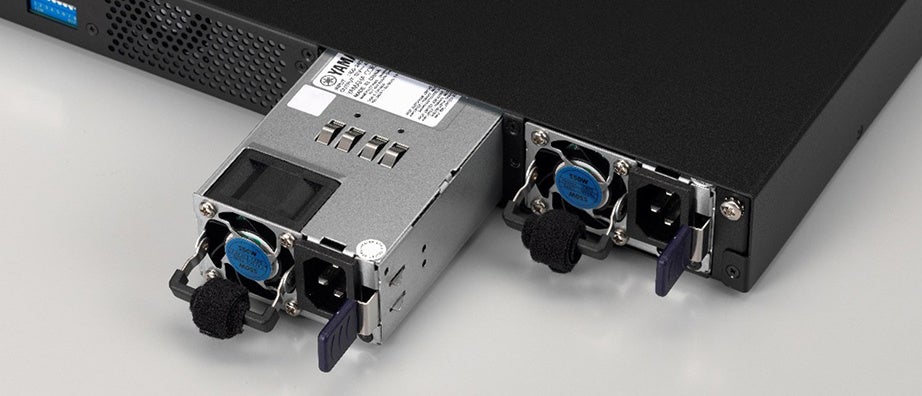

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-32dc98b7c1927f0c50331746349c3dc2-922×396.jpg Redundant power supply unit (only one unit shipped) 3． Ideal for SMPTE ST 2110 Environments – Supporting IP Media Operations in the Broadcast Market with PTPv2 BC Support – All of the switches released this time support the high-precision time synchronization standard “IEEE 1588 PTPv2 TC (Transparent Clock),” required for synchronized playback of audio, video, and other media. In network environments consisting of 100G/25G/10G/1Gbps, the switch adds relay delay time information to PTP messages passing through the switch before forwarding them. This enables synchronization accuracy between devices to be maintained at less than 1 μsec, even in applications requiring real-time
performance, such as in the Pro AV market. In addition, the standard L3 switches “SWX3220-30MC” and “SWX3220-30TCs” support “IEEE 1588 PTPv2 BC (Boundary Clock).” In network environments consisting of 100G/25G/10G/1Gbps, PTP messages can be terminated and regenerated using a local clock, maintaining highly accurate time synchronization even across multiple segments. This ensures the synchronization accuracy required for IP transmission of video, audio, and auxiliary data in SMPTE ST 2110 environments, enabling reliable use in IP-based media operations in the broadcast market.

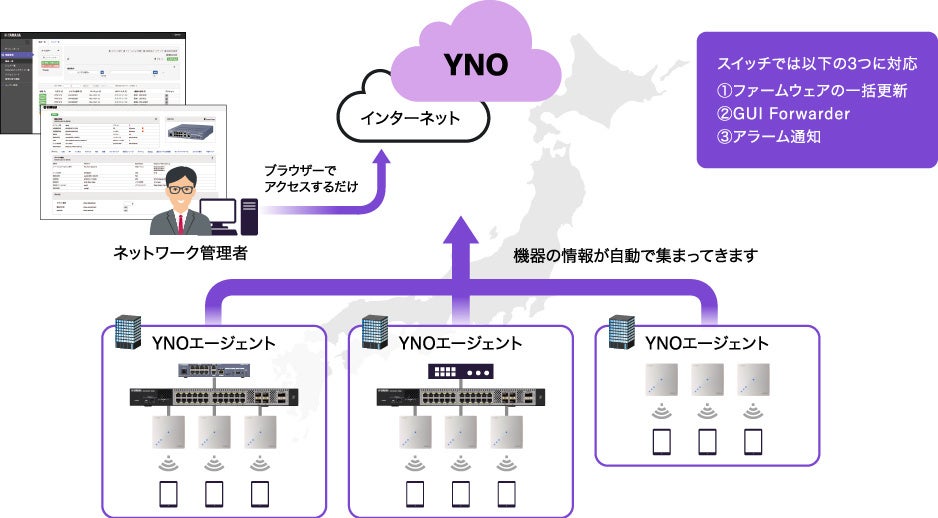

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-ec8a1c097b1bc5ff852badc462b46908-794×466.jpg 4. Smart network management through the cloud: Yamaha switch products now support YNO (※) All switches released this time are compatible with Yamaha’s cloud-based network management service, YNO (Yamaha Network Organizer). YNO is a cloud service that allows for centralized management of multiple network devices, including routers and wireless LAN access points, helping to improve operational efficiency and visibility. YNO allows you to select multiple network devices and update their firmware in bulk, reducing the burden of maintenance work. The GUI Forwarder function allows you to directly log in to the GUI of your branch devices via YNO. When used in conjunction with the LAN map, you can visually check the network configuration on the LAN side and easily grasp the operational status. Furthermore, the alarm notification function allows you to view alarm information sent from each device on the YNO management screen, facilitating early detection and response to problems. Even in a multi-vendor network environment, if a Yamaha switch is installed at the core of the LAN, you can visualize and manage devices under routers made by other
manufacturers. These features enable smarter and more efficient network operation and management. In addition to the switches being released this time, the existing Intelli L2, Lite L3, and Standard L3 switch series will also be compatible with YNO by updating to compatible firmware. This means that already deployed switches can also be managed via cloud management, enabling integrated management of new and old switches installed at multiple locations, further improving operational consistency and efficiency. *Please check here for information on compatible firmware.
https://www.rtpro.yamaha.co.jp/SW/index.html

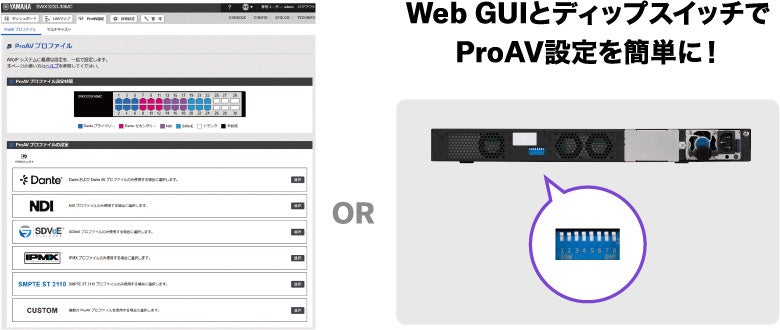

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-a7db783b0a01dd695ff0bd3684c9c81f-938×518.jpg 5. Enhanced configuration functionality for professional AV
installers: Addition of SMPTE ST 2110 and IPMX profiles. All switches released this time have enhanced profile configuration functionality for the professional AV market, adding new profiles compatible with SMPTE ST 2110 and IPMX. These profiles are industry-standard protocols for transmitting video, audio, and control data over IP networks with high accuracy and low latency, and are widely used in broadcasting facilities. In particular, a GUI-based profile selection function makes setup easy, even for ProAV installers unfamiliar with network equipment. This allows for quick deployment and stable operation in the field without having to worry about complex network settings. Furthermore, profile settings can also be changed using the dip switches on the back of the unit. This allows for physical
configuration in the field without requiring remote access, making it easy for ProAV installers to use and significantly reducing the burden of deployment. This allows for flexible and rapid response, making it highly convenient in a variety of field environments.

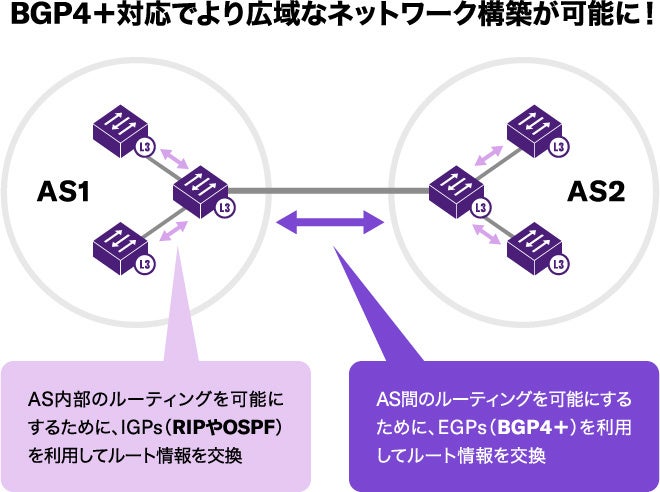

https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-961d7c044932c8cda8e093f6e98eb60f-780×330.jpg 6. Expanding Network Construction Flexibility with BGP Support – Standard BGP Support – The newly released standard L3 switches, the SWX3220-30MC and SWX3220-30TCs, now support BGP4 (Border Gateway Protocol 4 ) as a dynamic routing protocol. While standard L3 switches previously supported interior gateway protocols (IGPs) such as RIP and OSPF, BGP4 support now enables the exchange of route information between different autonomous systems (ASs) as an exterior gateway protocol (EGP), enabling more flexible and advanced routing design. An AS is a group of networks operated by a single administrative entity, and the entire Internet is made up of numerous ASs. IGPs are used to exchange route information within an AS, while EGPs are used to exchange route information between ASs. BGP4 is a representative EGP and is an important protocol that supports the backbone of the Internet. This feature is included as standard and can be used without an additional license. It can be used not only for site-to-site connections and multi-homed configurations in the IT market, but also for segment separation and optimization of video and audio
transmission networks in the ProAV market. This enables more advanced routing configurations in network environments that require high reliability and flexibility, such as broadcasting facilities, event venues, and educational facilities.
https://prcdn.freetls.fastly.net/release_image/10701/1041/10701-1041-a2c34cd11da671333307d4768b4cc0ee-660×492.jpg Related options Product name Product number Base price (excluding tax) Release date Power supply unit YPSU-550W-AC 80,000 yen December 2025 SFP28 module YSFP-25G-SR 120,000 yen December 2025 SFP28 module YSFP-25G-LR 200,000 yen December 2025 Active Optical Cable YAOC-25G-1M 100,000 yen December 2025 Active Optical Cable YAOC-100G-1M 200,000 yen December 2025 SFP module YSFP-G-SXA 68,000 yen Now on sale SFP module YSFP-G-LXA 136,000 yen Now on sale SFP module YSFP-10G-SR 78,000 yen Now on sale SFP module YSFP-10G-LR 146,000 yen Now on sale Direct attach cable YDAC-10G-1M 20,000 yen Now on Sale Direct Attach Cable YDAC-10G-3M 25,000 yen Now on sale RJ-45 console cable YRC-RJ45C 4,800 yen Now on sale *Product and company names mentioned herein are trademarks or registered trademarks of our company or the respective companies. *The information contained in this press release is current as of the date of publication. Please note that this may change after the announcement date. Copyright ©
