Diamond Head Co., Ltd.
Released “OVERTIME(R) 7-inch One Seg Drive Recorder Navigation OT-DN706K” equipped with drive recorder function
……
Diamond Head Co., Ltd. “Brand name: OVERTIME(R)” has released “OVERTIME(R) 7-inch One Seg Drive Recorder Navigation OT-DN706K”. [Image 1

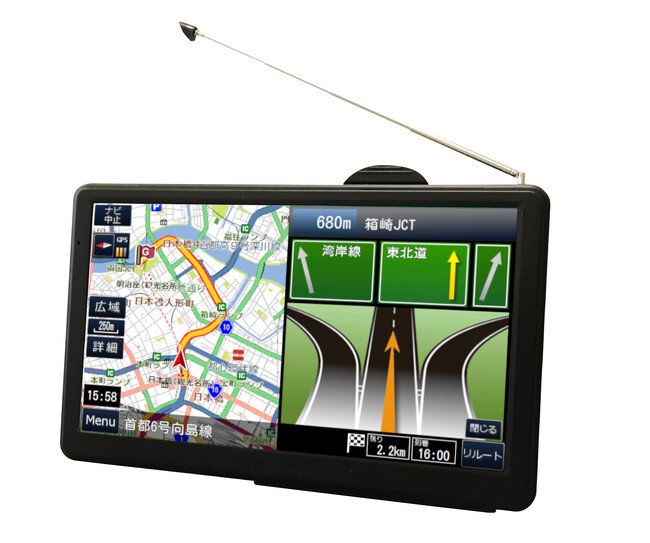

OVERTIME(R) 7 inch One Seg Drive Recorder Navigation OT-DN706K In addition to car navigation functions, this portable navigation system also has one-segment recording, various media playback, and drive recorder functions.
[Image 2
Supports SD card playback
In addition to using car navigation and watching TV, you can also play media such as videos and music stored on your SD card.
[Image 6
Display safe driving support information
Displays support information tailored to the location, such as one-way traffic display, tunnel assist function, speed limit function that displays a warning when approaching a speed warning zone, and Orbis information of speed control areas!
Product Specifications
Hardware specifications
Liquid crystal: TFT
Backlight: LED
Size: 7 inches
Resolution: 800×480 pixel
Viewing angle (up, down, left and right): (30° up, 15° down, 30° left, 30° right)
Brightness: 200 cd/m2
Touch panel: pressure sensitive
CPU: MSB2531 ARM Cortex-A7 800MHz
Built-in memory: 256MB (DDR SDRAM) Flash 4GB
OS: Microsoft WindowsCE 6.0
Audio output: 1.0W×1
Earphone terminal: Φ3.5mm stereo mini jack
microSD card slot For media: 32GB or less
microSD card slot for drive recorder: 32GB or less (class 6 or higher) Playback video format: ASF/AVI/WMV/MPG
Playback music format: MP3/WMA
Playback image format: JPG/BMP
TV reception: One segment (470-770MHz) recording possible
Camera part: 1 million pixels
Angle of view: horizontal 105° vertical 60°
Power supply voltage: DC5V (miniUSB type input terminal)
Power consumption (W): 3.5W
Standby power consumption: 20mW or less
Built-in battery: Lithium polymer
Capacity (mAh)/Voltage (V): 1600mAh/3.7V
Driving time: Approximately 1 hour
Charging time: about 4 hours
Size: approx. 175mm x 109mm x 21mm
Mass: Approx. 270g
Operating temperature: 0~45℃
Storage temperature: -10~60℃
Accessories: Car DC adapter (input: DC12-24V), car suction cup stand set, suction cup base plate, stylus pen (attached to the stand), instruction manual (warranty included)
Software specifications
National road map: OpenStreetMap 2024 edition
Day/night screen switching: manual/automatic switching
Scale switching: 12 steps (25m to 100km)
Route search function: Recommended route, general priority, high speed priority, shortest distance, multiple route display
[Other features]
Reroute function (automatic/manual), tunnel assist (when navigating), sky mode, left/right turn guidance (uppercase right/left turn indication), one-way street indication (map scale 50m or less), estimated time of arrival, distance to destination , Orbis information (audio warning/position text display), expressway display (with scroll function), Japanese map language, north up/head up switching (up north/up towards own vehicle), smart interchange compatible, engine interlocking ON /OFF, demo run function
Phone number search: Approximately 4.8 million items (companies) Address search: Approximately 33 million items
Facility name search: Approximately 680,000 results
Surrounding facility search: Approximately 660,000 results
Search location history: 100 locations
220 locations x 6 categories, home registration
